Induction Forging Machine
Quantity
-
+
Inquiry

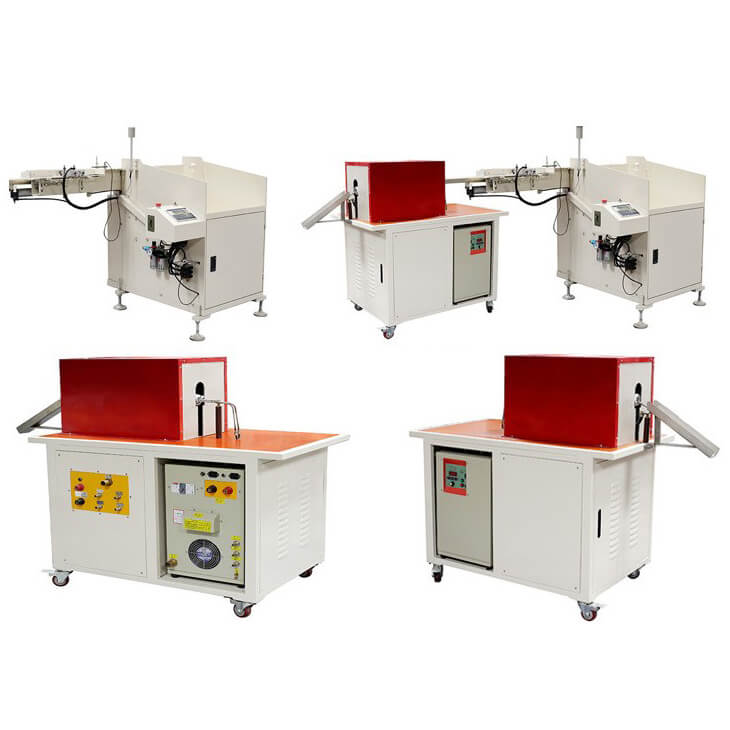

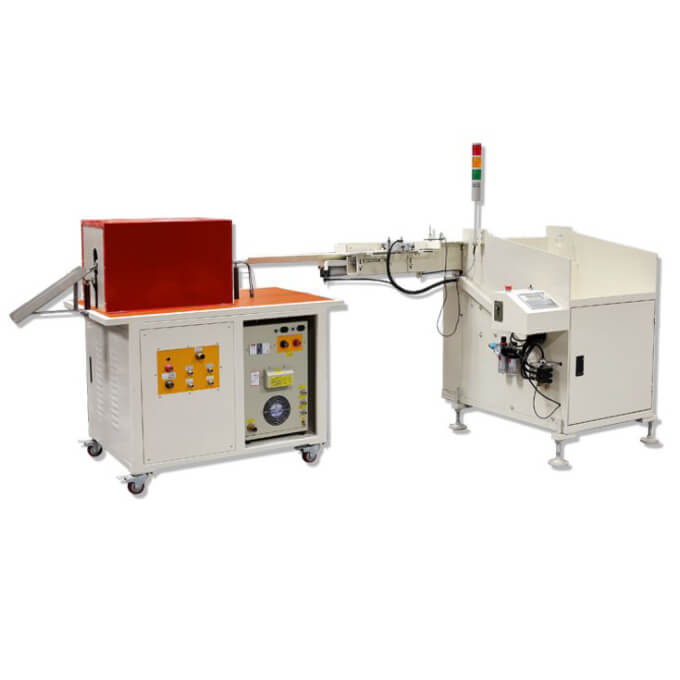

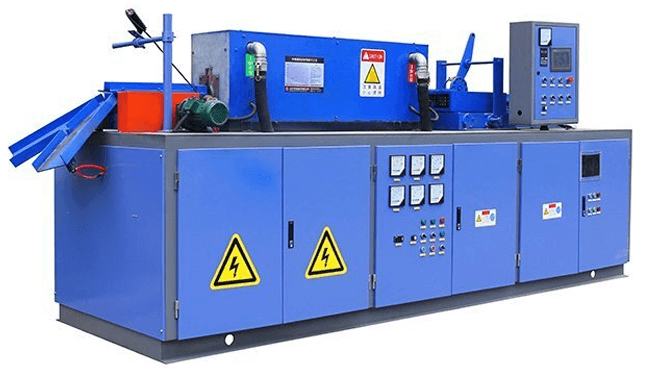

Induction Forging Machine

    Application:

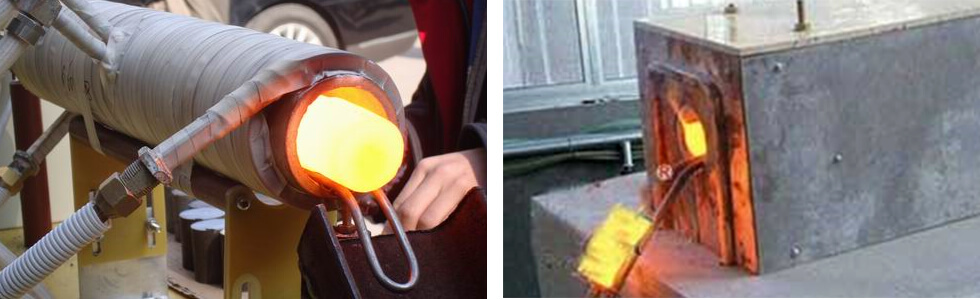

    * Bar Forging

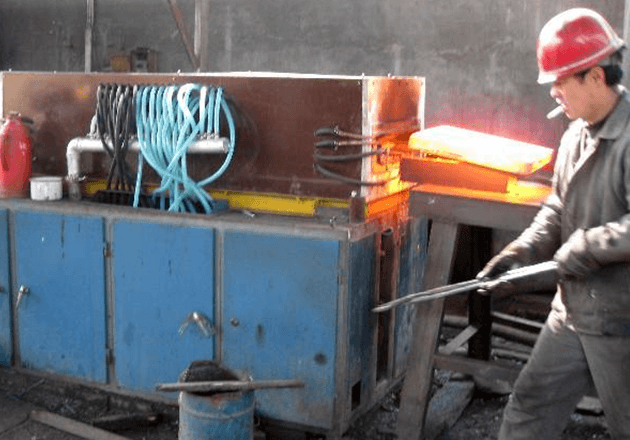

    * Steel plate heating

    * Hardening Tempering

    * Annealing Quenching

    * Other heating treatment

    Features:

    * Model: 15kW-160kW

    * IGBT Type

    * Frequency: 1 ~ 10KHZ

    * 24 Hour continuous work

    * Voltage & current full display. Adjust heating, Holding time

    * Easy to operate and more stable

    * Design different type induction coil

Model MYF-15KW MYF-25KW MYF-35KW MYF-45KW MYF-70KW MYF-90KW MYF-110KW MYF-160KW
Input Voltage 3 x 380V, 50/60HZ
Input Current 20A 30A 50A 65A 100A 150A 180A 240A
Output Power 1~15KW 1~25KW 1~35KW 1~45KW 1~70KW 1~90KW 1~110KW 1~160KW
Output Frequency 1-10 KHZ
Cooling Water 0.2 Mpa 2 ~ 6 L/Min 0.2 Mpa 4 ~ 8 L/Min 0.2 Mpa 4 ~ 10 L/Min 0.2 Mpa 5-12 L/Min
Cable Length 1 ~ 5 meters
Heating Size Dia: 5 ~30 mm Dia: 5 ~40 mm Dia: 5 ~70 mm Dia: 5 ~100 mm
Weight 100kg 120kg 140kg 150kg 160kg 180kg 200kg 240kg

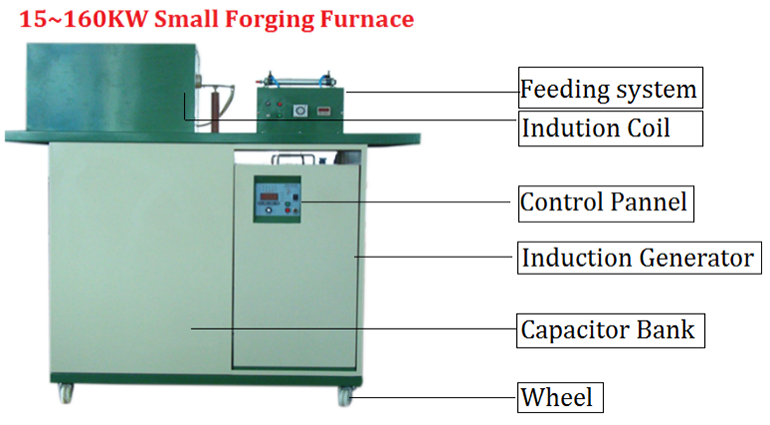

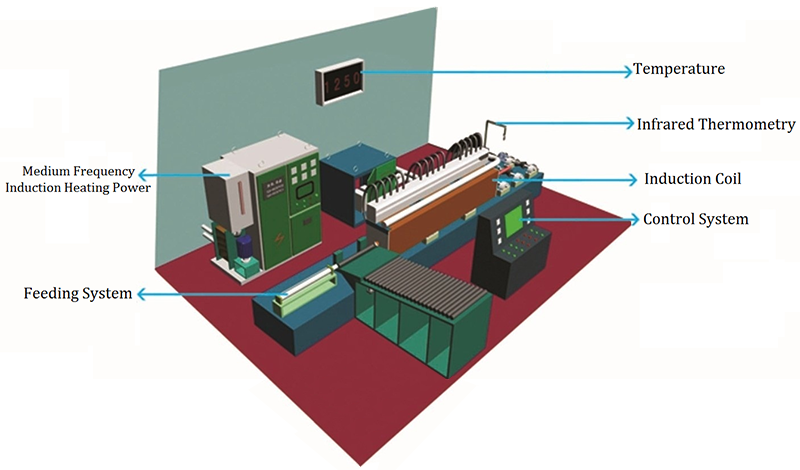

The System Include:

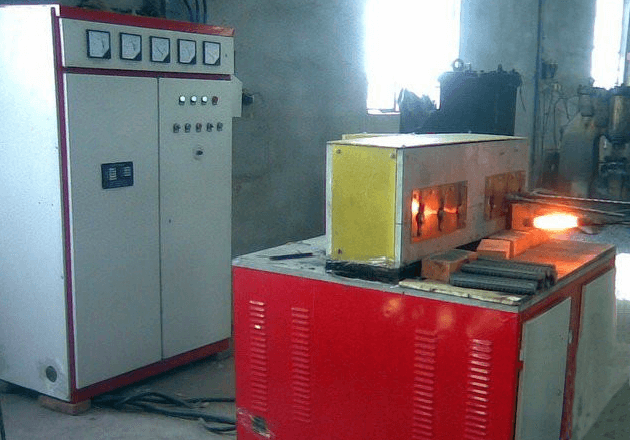

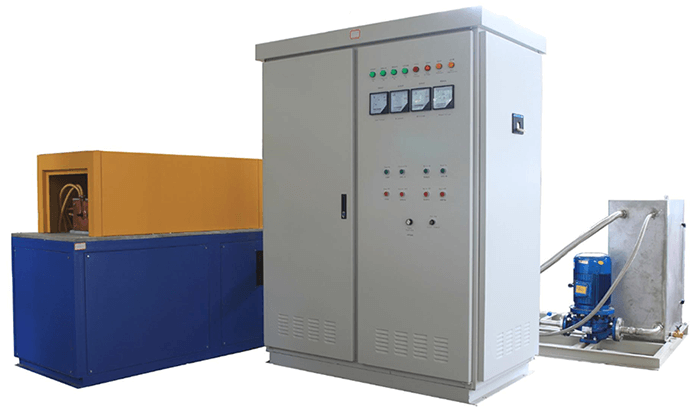

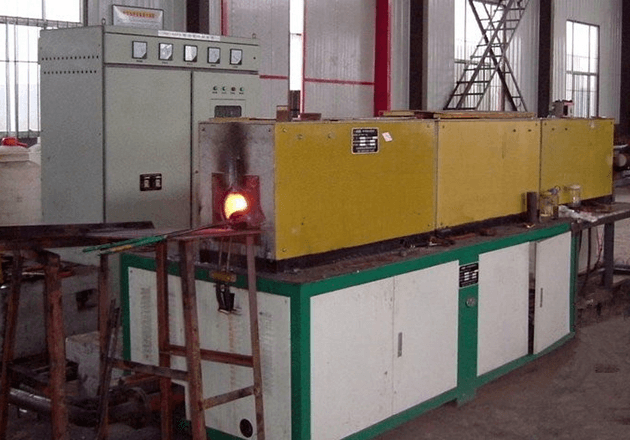

Medium Frequency Induction Forging Machine --- KGPS TYPE

Application:

* Bar Forging

* Steel plate heating

Specification and Technical Parameter
Model MF Power Input Voltage DC Current FREQUENCY HEATING CAPACITY
KGPS-160 160KW 380V 300A 1KHZ 400KG
KGPS-200 200KW 380V 400A 1KHZ 500KG
KGPS-350 350KW 380V 700A 1KHZ 800KG
KGPS-500 500KW 380V 1000A 1KHZ 1200KG
KGPS-750 750KW 380V
660V		 1500A
850A		 0.8KHZ 2000KG
KGPS-1000 1000KW 380V
660V		 2000A
1140A		 0.8KHZ 2500KG
KGPS-1500 1500KW 380V
660V		 3000A
1700A		 0.5KHZ 3500KG
KGPS-2000 2000KW 660V
1250V		 2273A
1212A		 0.5KHZ 4000KG
KGPS-2500 2500KW 660V
1250V		 2840A
1515A		 0.5KHZ 5000KG
KGPS-3500 3500KW 660V
1250V		 4000A
2100A		 0.5KHZ 7000KG

Advantage:

* Fast and uniform heating with energy conservation

* Easy to operate and install

* Environmental protection and no pollution

* Multiple protection and safe operation

* Stable equipment, simple maintenance, long working life
