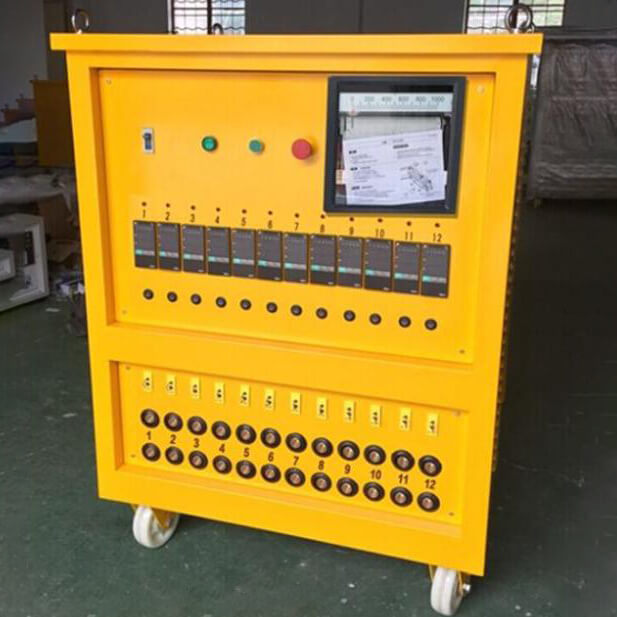

130KVA-12 Channel PWHT Machine
Quantity
-
+
Inquiry

130KVA-12 Channel PWHT Machine

    Weld preheating, Post weld heating treatment, PWHT machine


    Application:

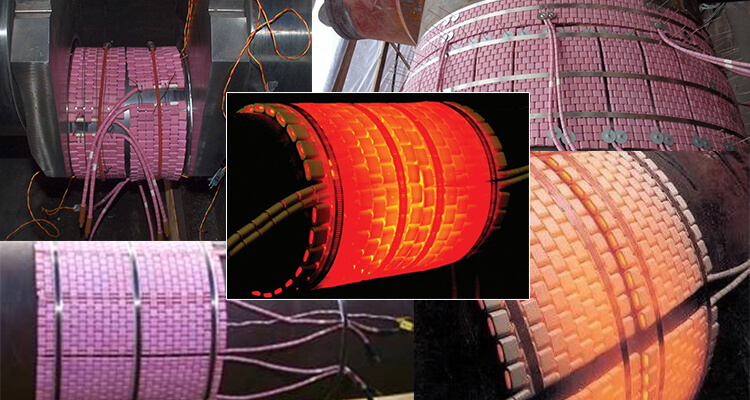

    ● All kinds of metal components, such as the large tower, pressure vessels, bridges, high pressure pipeline welding preheating, welding preheating, stress relief.

    ● Piping, vessels of auxiliary heating

    ● Longitudinal-seam welded bends

    ● Area heating for metal heat treatment

    ● Oil pipe welding treatment

    ● Weld preheat Treating, weld preheat

    ● Industrial Heating Heat treatment

    ● Industrial tube heating and Water Pipe heating

Advantage:

* Advanced program to control the instrument

* With stable function and adaptive control function

* Automatic temperature control, ensure the quality of the products

* Extend heaters life

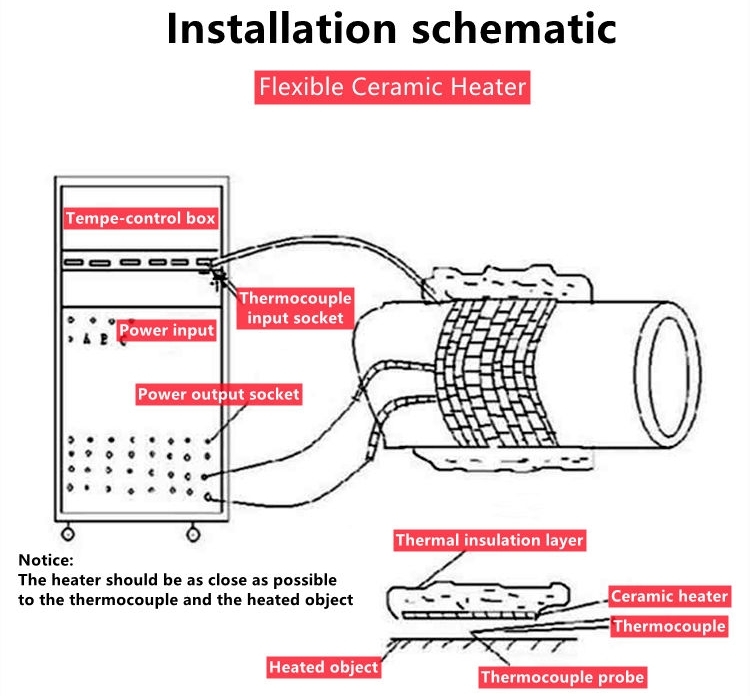

* The machine can be matched with all kinds of heaters, used for preheating before welding and post weld treatment.

Technical:

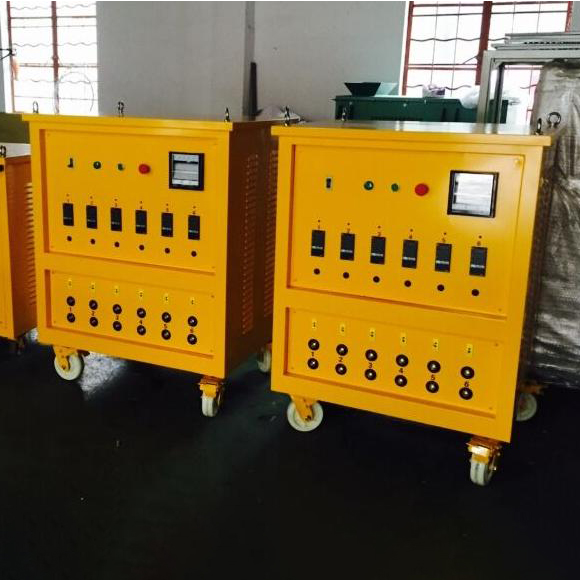

Transformer Type Heat Treatment Machine
Number of Channels Output power Input Voltage Output Voltage
6Channels 50KVA380V/415V/440V/480V60V
65KVA 380V/415V/440V/480V 80V
12Channels 100KVA380V/415V/440V/480V 60V
130KVA 380V/415V/440V/480V 80V

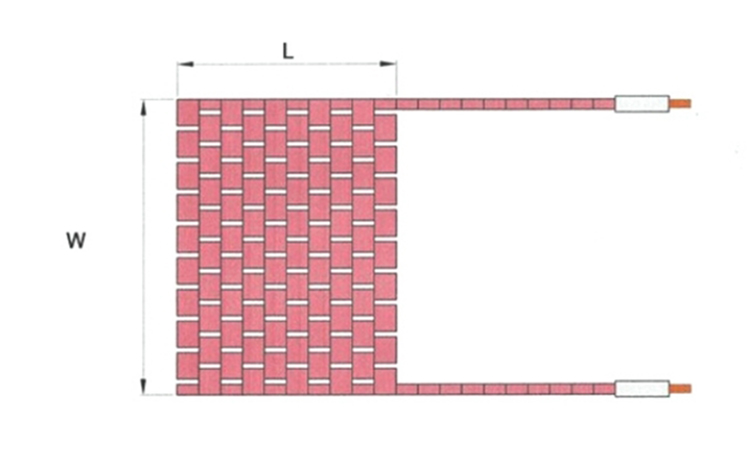

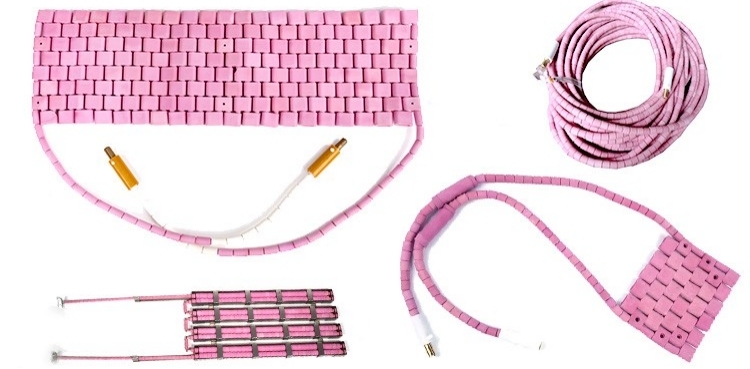

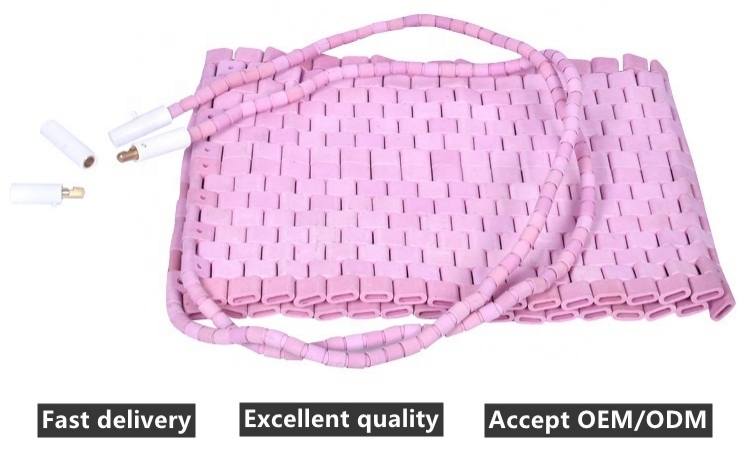

Low Voltage CP Heater:

Type ReferenceWidth LengthVoltage(V) Power(kw)
mminchmminch
CP3 753 670 26.560/80 2.7/3.6
CP4 100 4 500 19.560/80 2.7/3.6
CP6 150 6 335 1360/80 2.7/3.6
CP8 205 8 250 9.7560/80 2.7/3.6
CP10255 10205 860/80 2.7/3.6
CP12305 12165 6.5 60/80 2.7/3.6
CP15380 15145 5.7560/80 2.7/3.6
CP16410 16.25 125 5 60/80 2.7/3.6
CP21525 20.5105 4 60/80 2.7/3.6
CP24600 23.5853.2560/80 2.7/3.6
