YANTONG is a professional manufacturer of induction heating equipment. We have decades of experience in the induction heating field, continued to provide products and services for thousands companies, not only to provide products, but also have strong R & D team technical guarantees.

For many processes melting is the first step in producing a useful product; induction melting is fast and efficient. By changing the geometry of the induction coil, induction melting furnaces can hold charges that range in size from the volume of a coffee mug to hundreds of tons of molten metal. Further, by adjusting frequency and power, we can process virtually all metals and materials including but not limited to: iron, steel and stainless steel alloys, copper and copper-based alloys, aluminum and silicon. Induction equipment is custom-designed for each application to ensure it is as efficient as possible.

A major advantage that is inherent with induction melting is inductive stirring. In an induction furnace, the metal charge material is melted or heated by current generated by an electromagnetic field. When the metal becomes molten, this field also causes the bath to move. This is called inductive stirring. This constant motion naturally mixes the bath producing a more homogeneous mix and assists with alloying. The amount of stirring is determined by the size of the furnace, the power put into the metal, the frequency of the electromagnetic field and the type/amount of metal in the furnace. The amount of inductive stirring in any given furnace can be manipulated for special applications if required.

Features of our Induction Melting Furnace

An Induction melting furnace uses a copper induction heating coil that delivers an alternating magnetic current to the metal within the coil. This alternating magnetic current creates a resistance in the metal, causing it to heat and eventually to melt. Induction furnace technology does not require any flame or gasses that can be harmful to the environment to melt metals.

1, Compact structure, simple operation, reliable operation, strong overload, high productivity, low energy consumption;

2, The melting is rapid, the heating temperature is uniform, the burning is small, the metal component is uniform, and the product quality is high;

3, Smelting management system, realizing process control, furnace temperature control, equipment self-diagnosis and other functions;

4, Supporting environmental protection technology, the surrounding temperature, less smoke, friendly environment.

Induction Melting Furnace for Sale

The induction melting furnace is one of our main products. The induction melting furnace is mainly used in steel, cast iron, black metal and copper, aluminum, magnesium, zinc, precious metals such as colored metals and alloys. Among them, a vacuum induction melting furnace is used to smelt high temperature alloy, magnetic material, electrical alloy, high strength steel, nuclear fuel, etc.

As the professional induction heating equipment manufacturer, we also offer natural gas/oil fired melting furnace, vacuum induction furnace, medium frequency induction melting furnace, ingot casting conveyor. Welcome to choose.

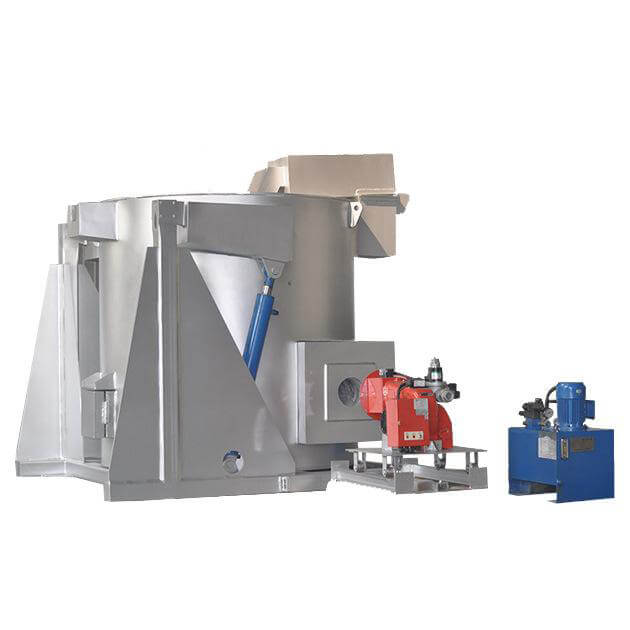

  • Natural Gas/Oil Fired Melting Furnace

    Model: GFT-100KG, 200KG, 500KG, 1000KG, 1500KG, 2000KG
    Natural gas/oil fired type aluminum melting furnace
    Max Heating Temperatrure: Aluminum 950°C Copper 1350°C
    24 Hour counitinous work and easy to operate and more stable
    Design different type capacity melting furnace

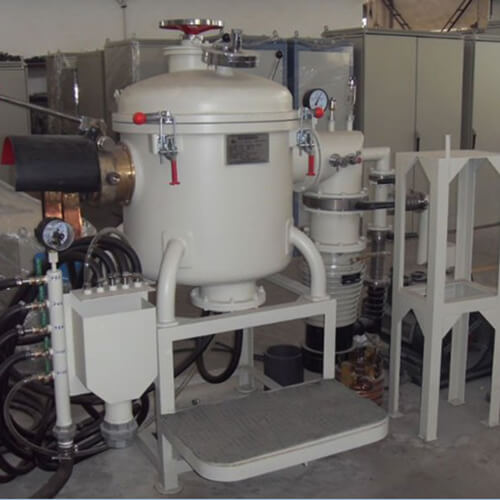

  • Vacuum Induction Furnace

    Vacuum Induction Furnace is vacuum induction smelting equipment which can melt metal and sinter power by using the medium frequency induction heating principle under the condition of vacuum. It is applicable in the field of metal materials, such as Ni, special steel, precision alloys, Cu alloys, Nd-Fe-B, Dysprosium metal, active metal, high-temperature alloys, special materials, magnetic materials and so on. These metal materials can be melted, cast and sintered in a vacuum or in the prot- ection of the atmosphere.

  • Medium Frequency Induction Melting Furnace

    Medium frequency induction melting furnace adopts thyristor as the core inverter. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

  • Aluminum Ingot Casting Machine/ Caster/ Conveyor

    The ingot casting conveyor is used for fully automatic control production of ADC series grade 5.0-10.0 kg cast aluminum alloy ingots. The casting machine can meet the requirement of continuous production 24 hours a day, and the production process requirements of casting aluminum ingots and automatic stacking.
    The ingot mould through spray type cooling make aluminum ingots through sufficient cooling and coagulation, by tapping the automatic ejection device will fall off aluminum ingots. Ingot casting machine adopts linear (for more mature) in recent years, driving part adopts the infinite speed adjustment, stable operation, reduced the equipment of dithering phenomenon, demoulding tapping, adopting automatic demoulding high sex, ingot casting production efficiency is high, the ingot billet weight evenly, high degree of automation, low labor intensity, convenient operation, simple maintenance, etc.
